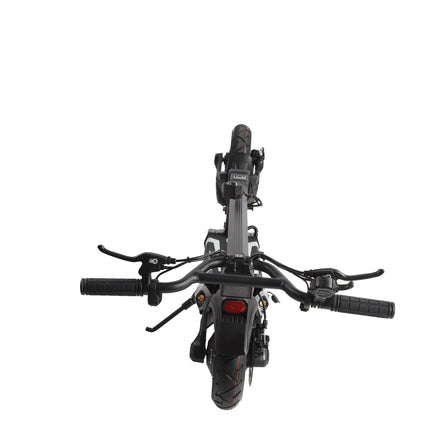

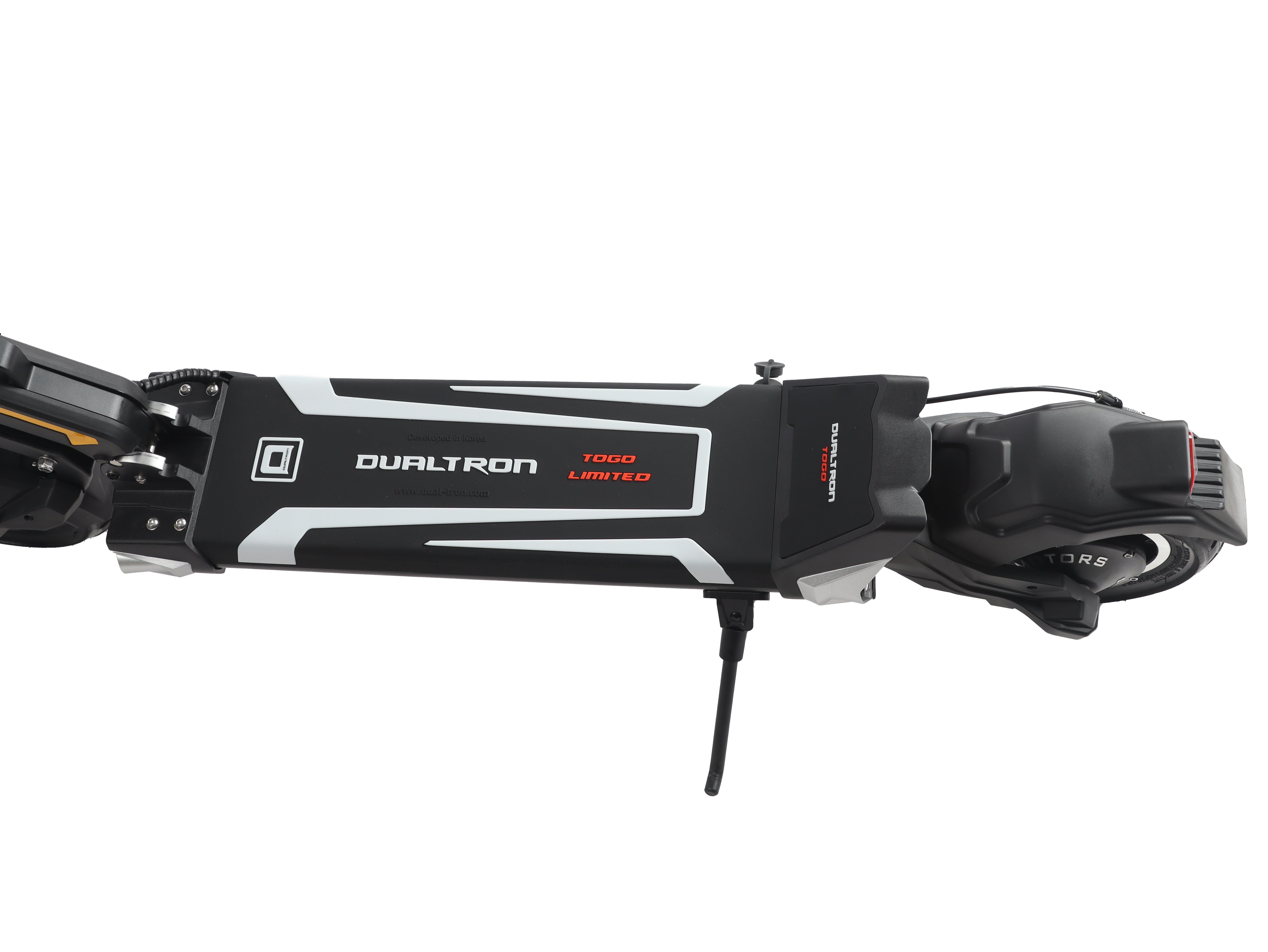

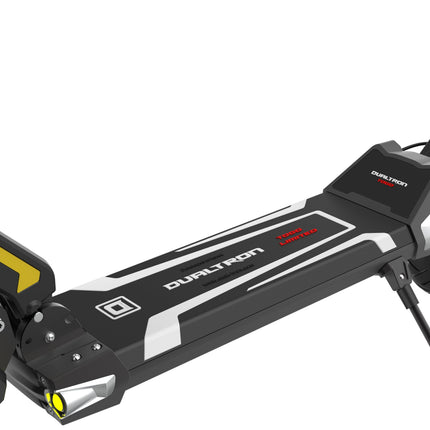

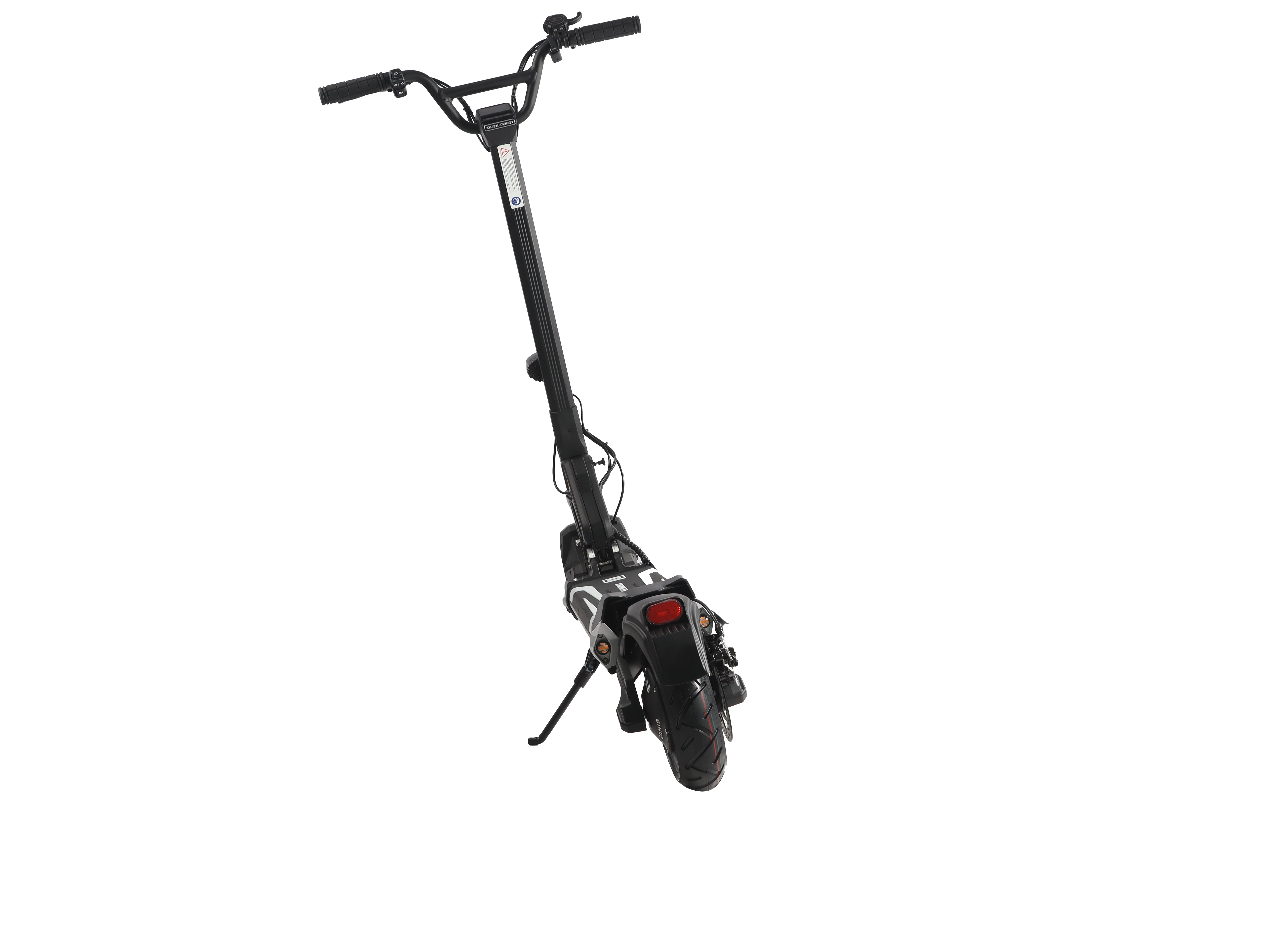

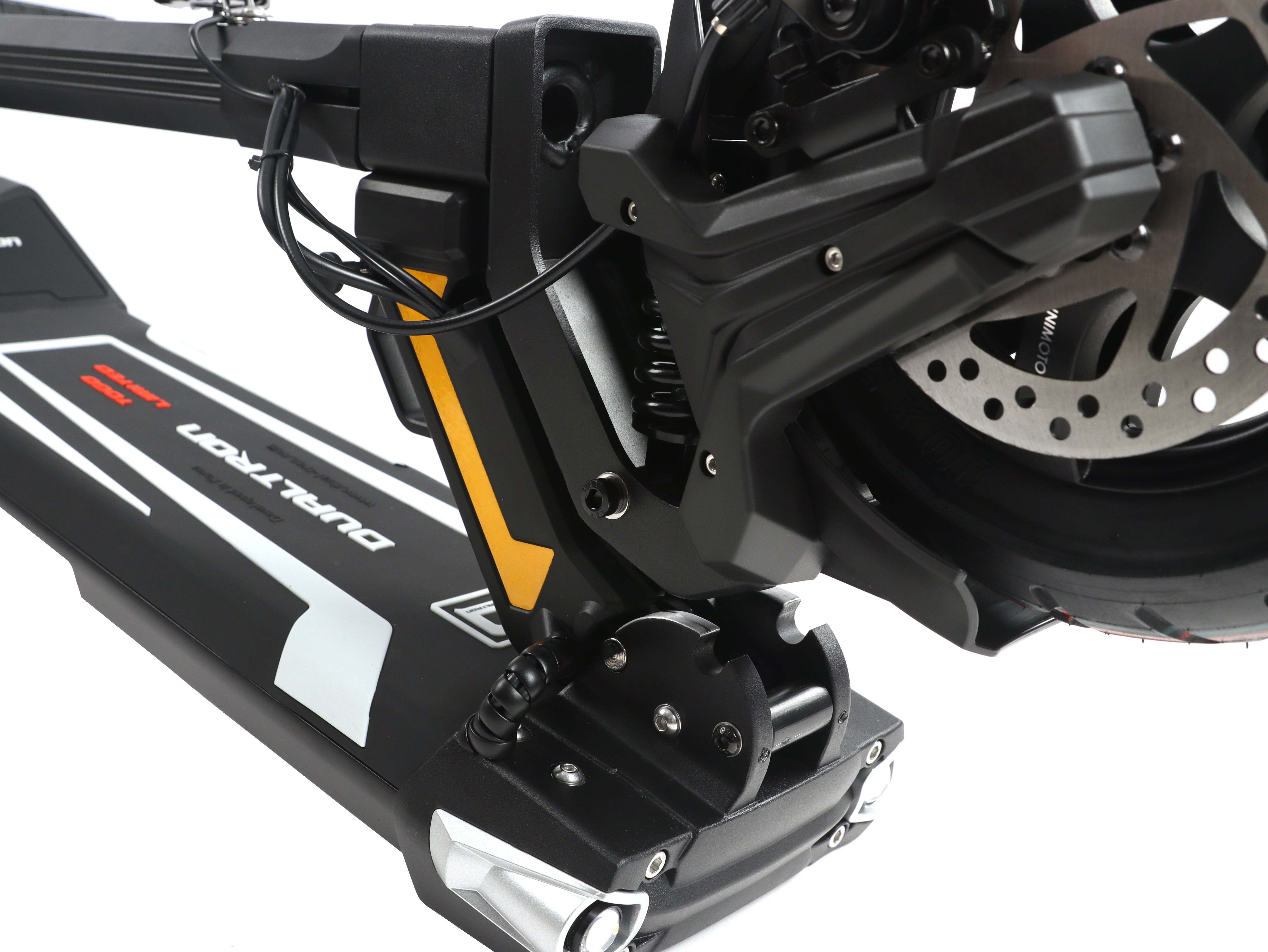

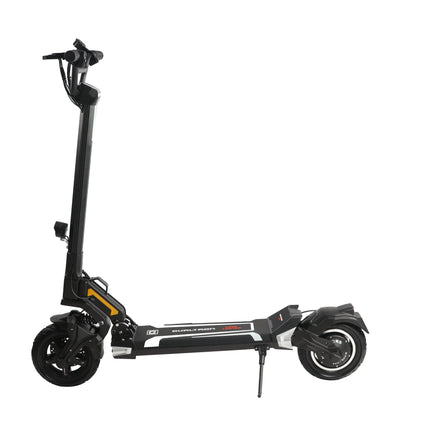

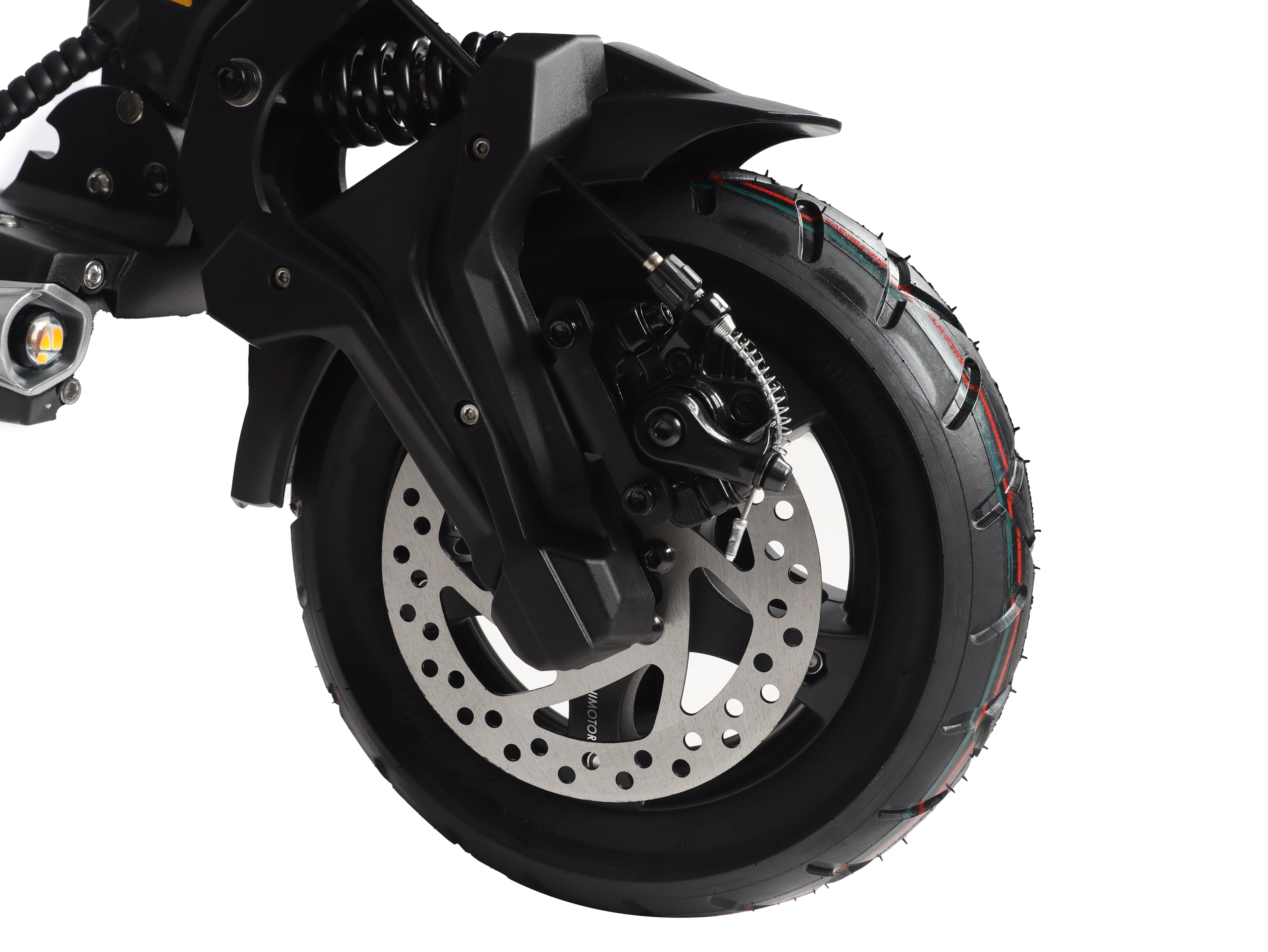

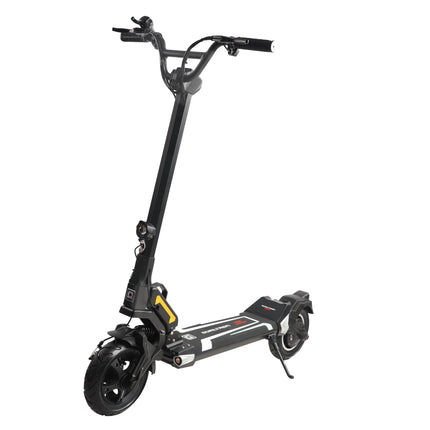

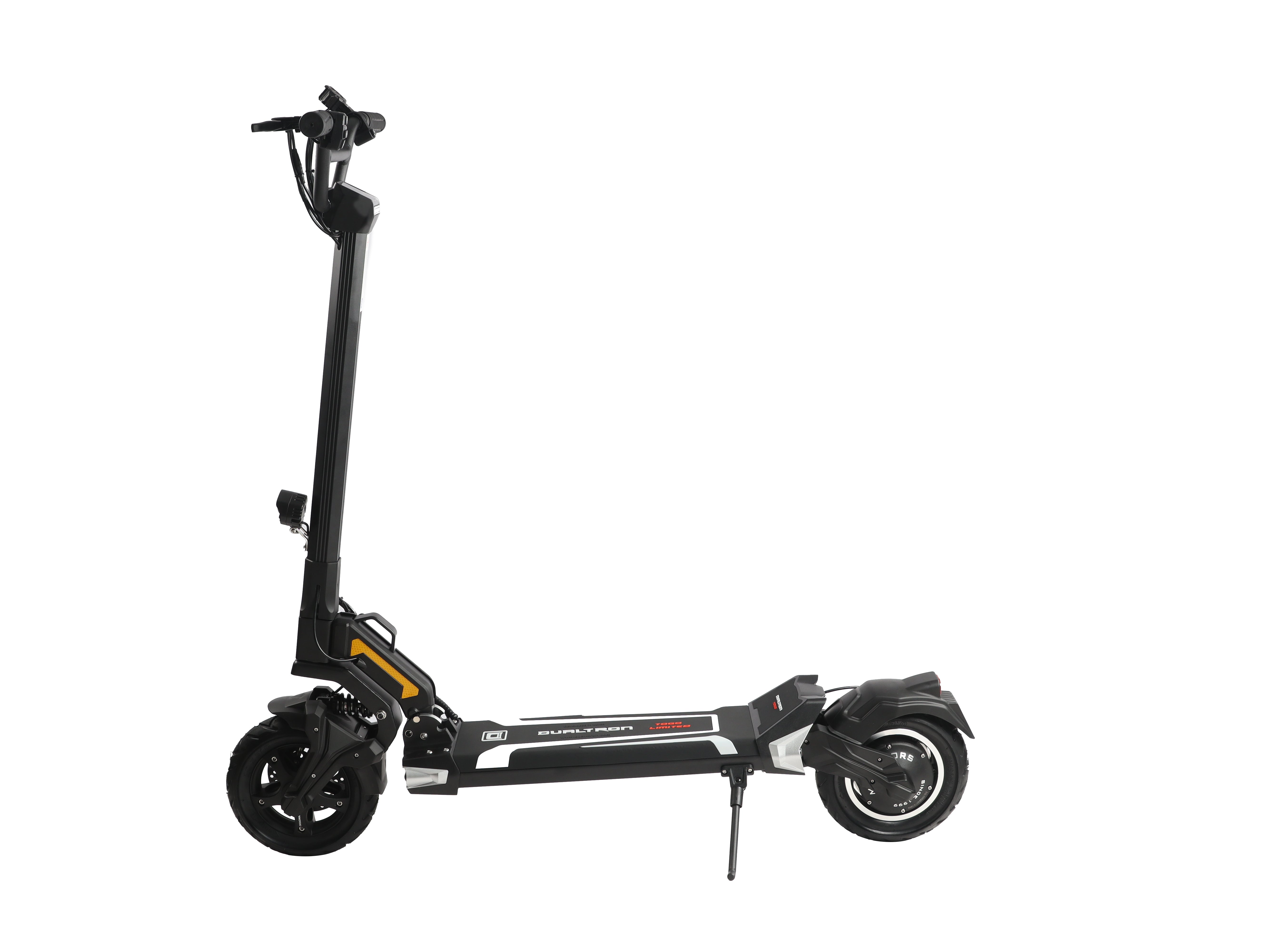

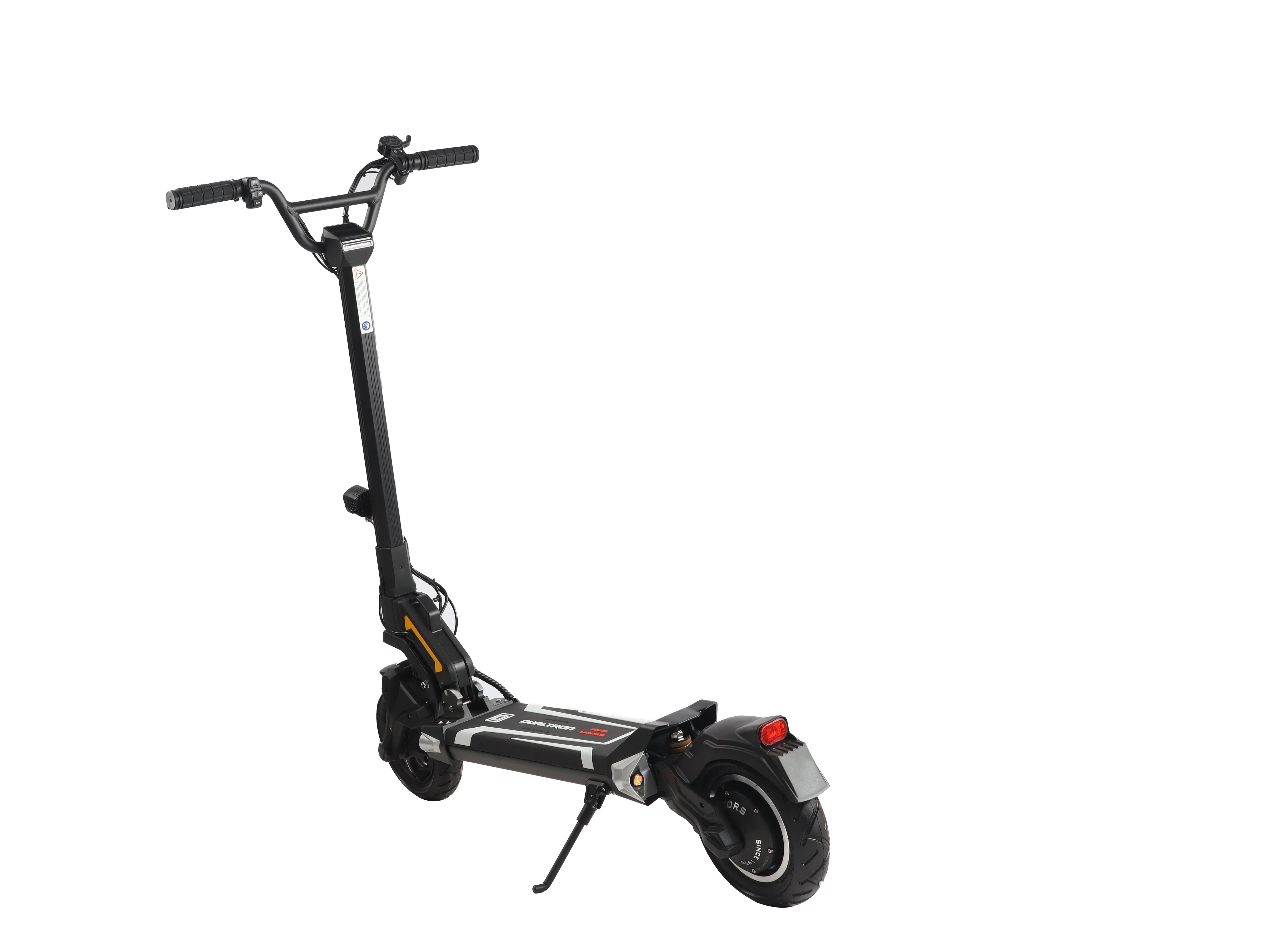

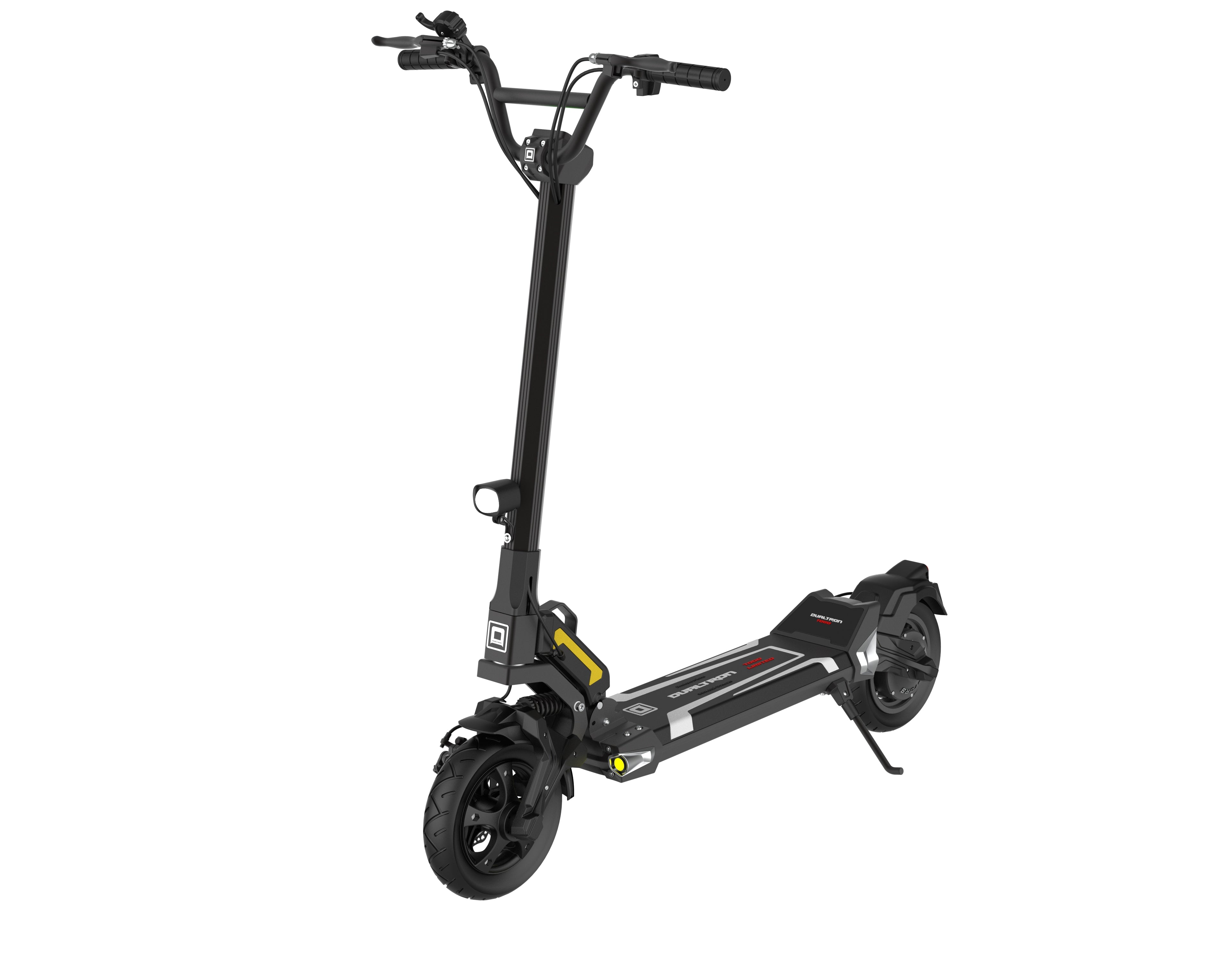

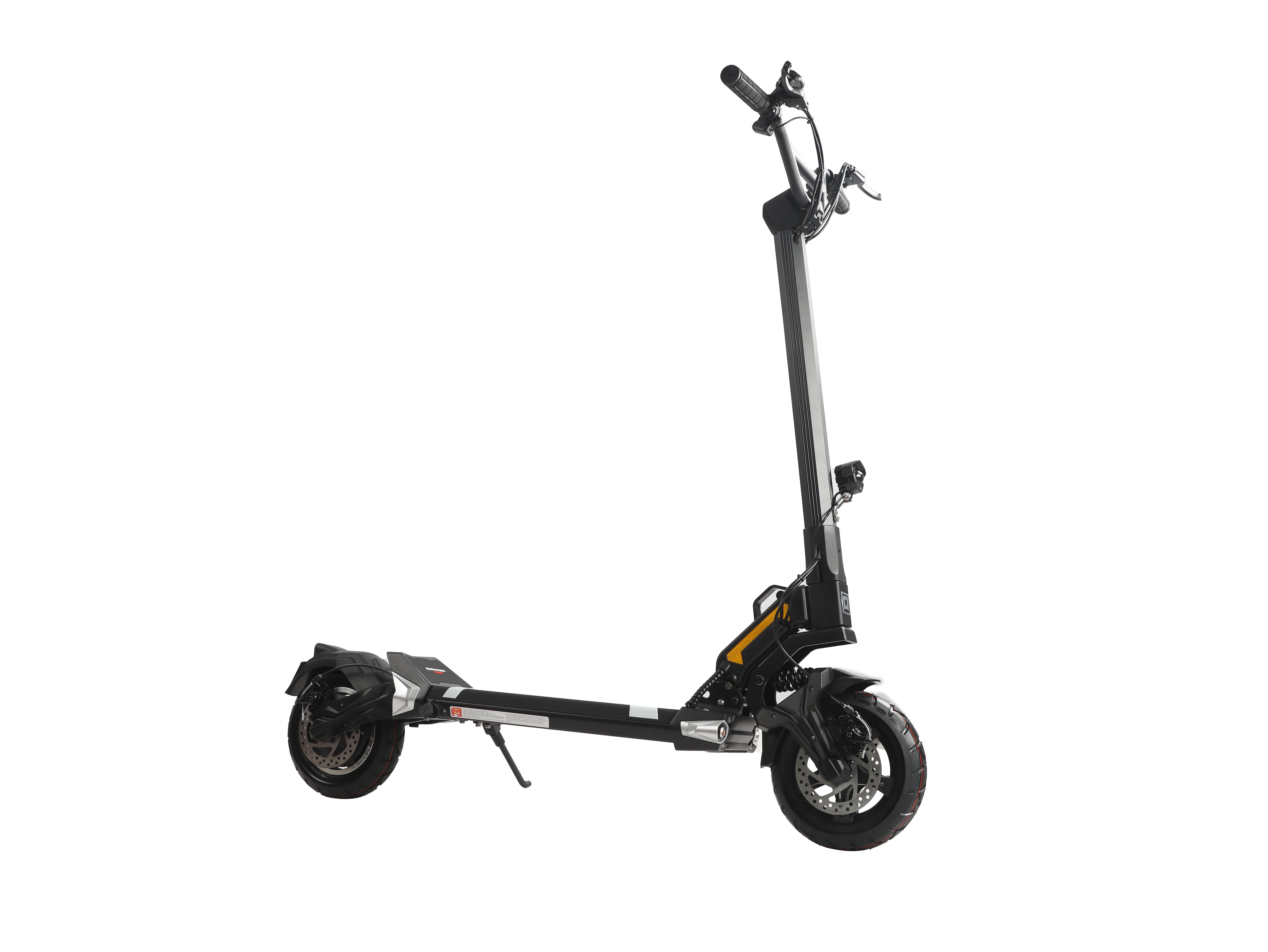

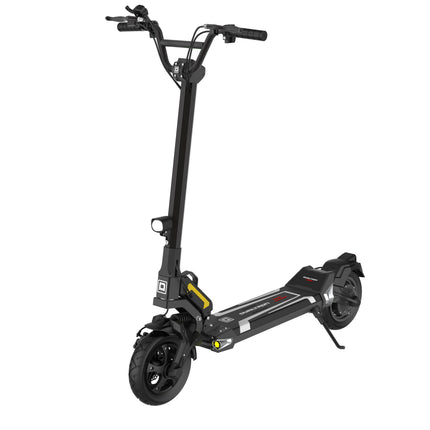

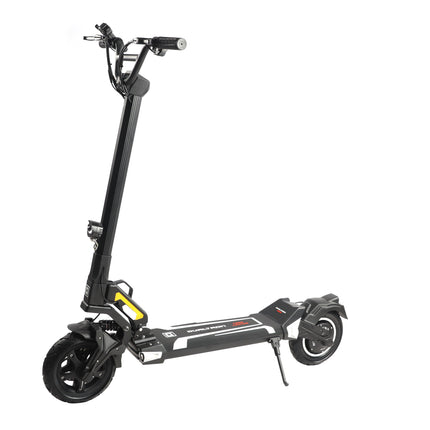

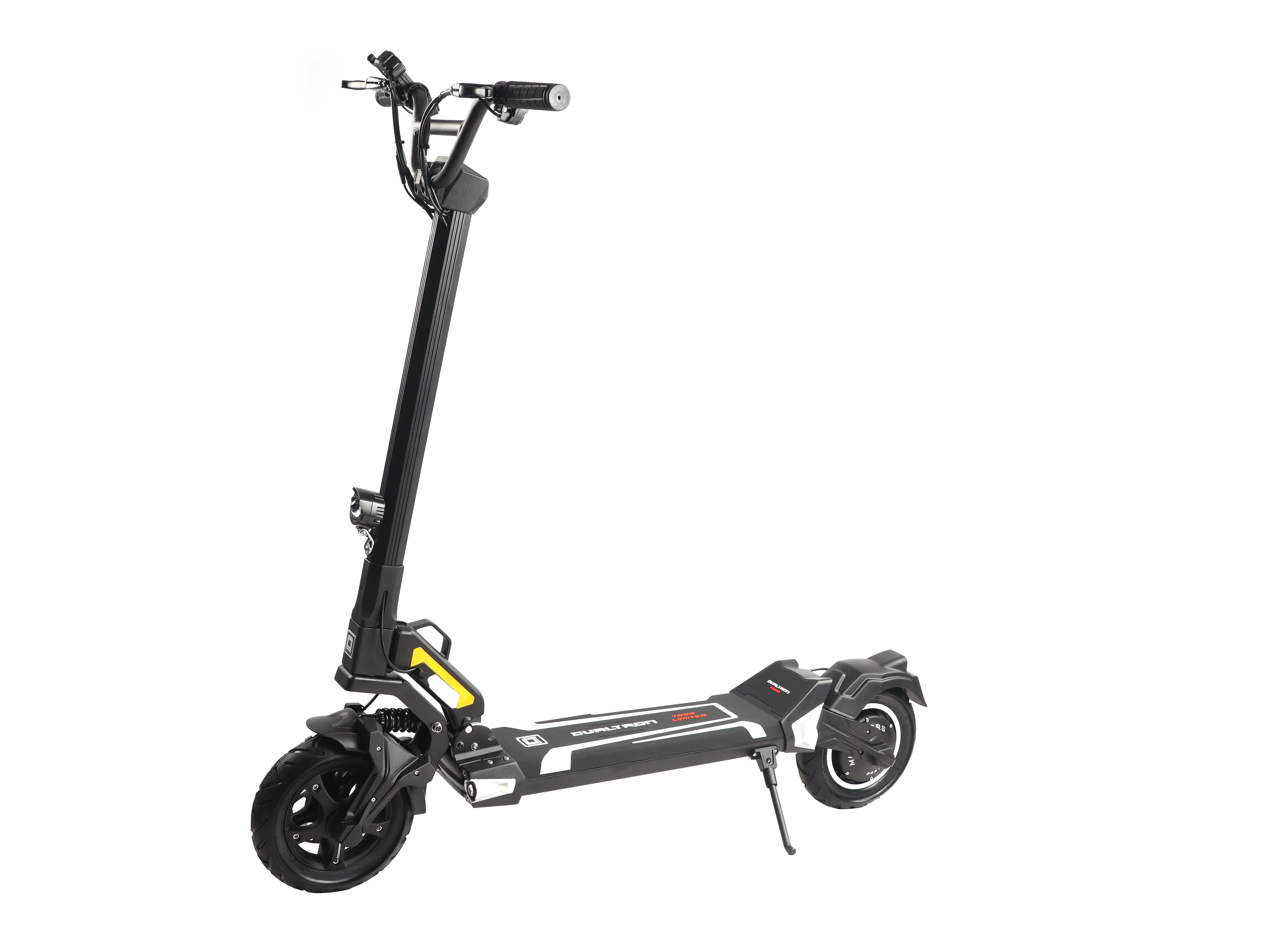

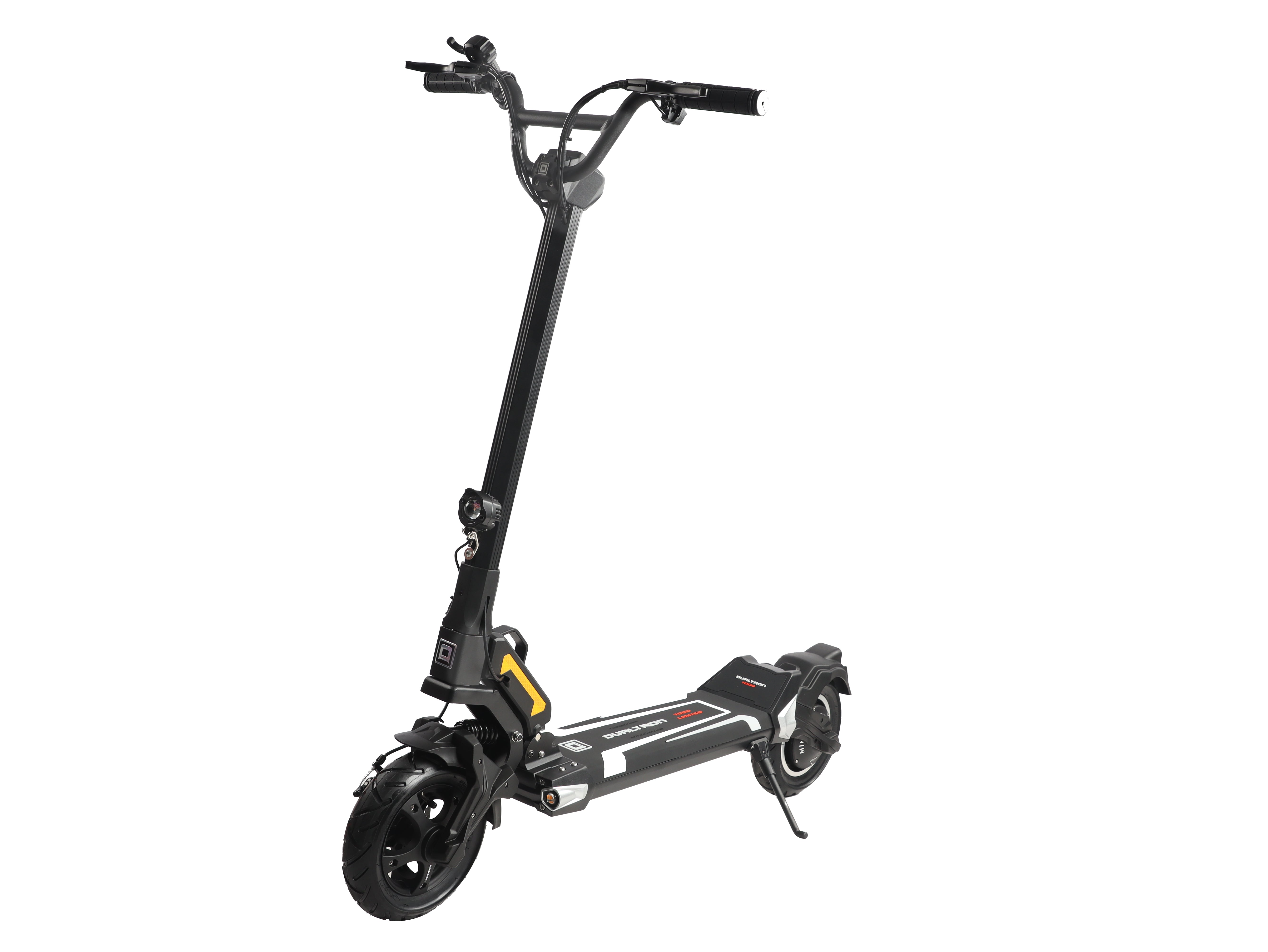

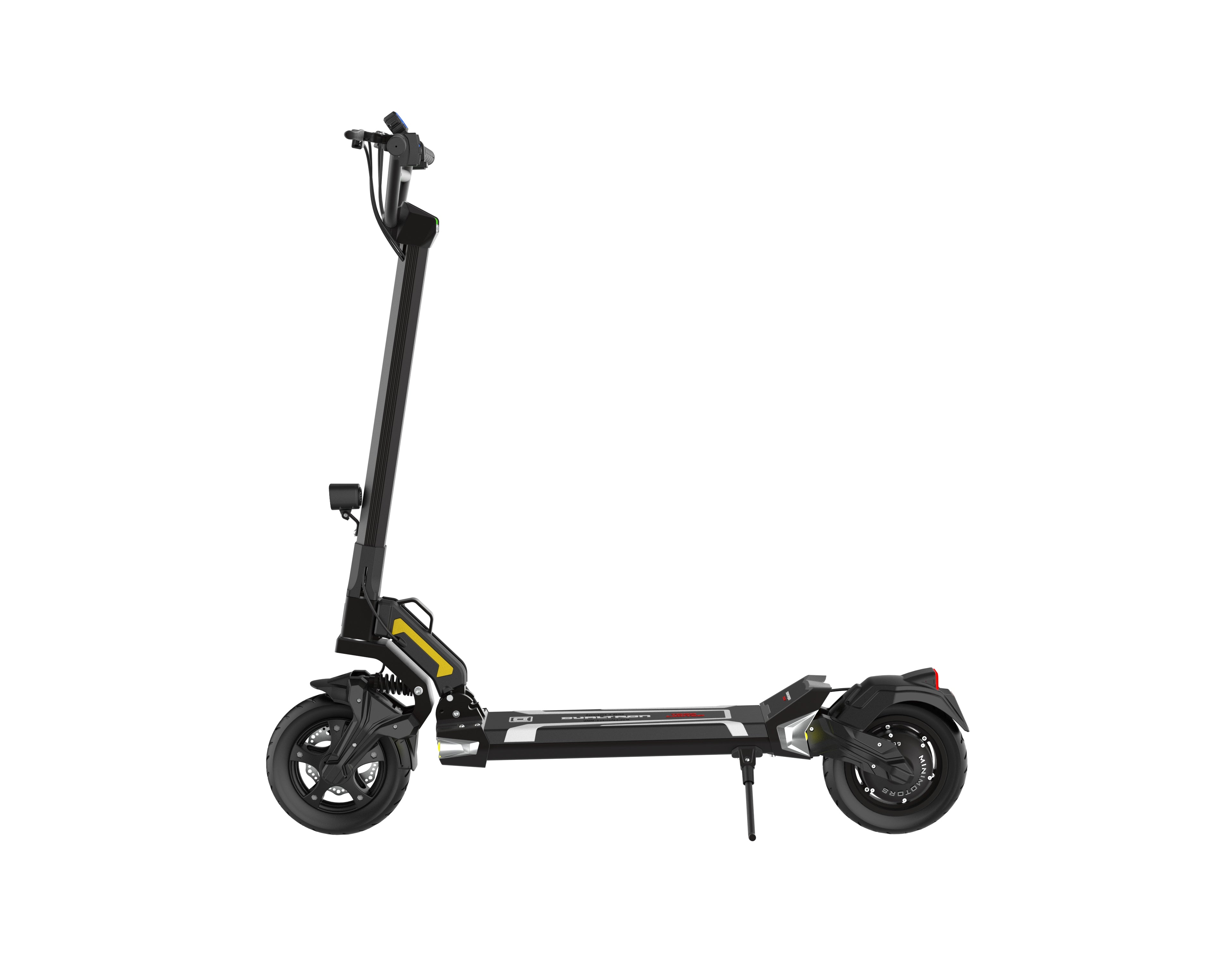

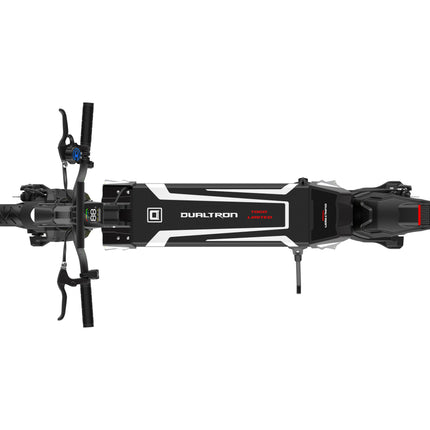

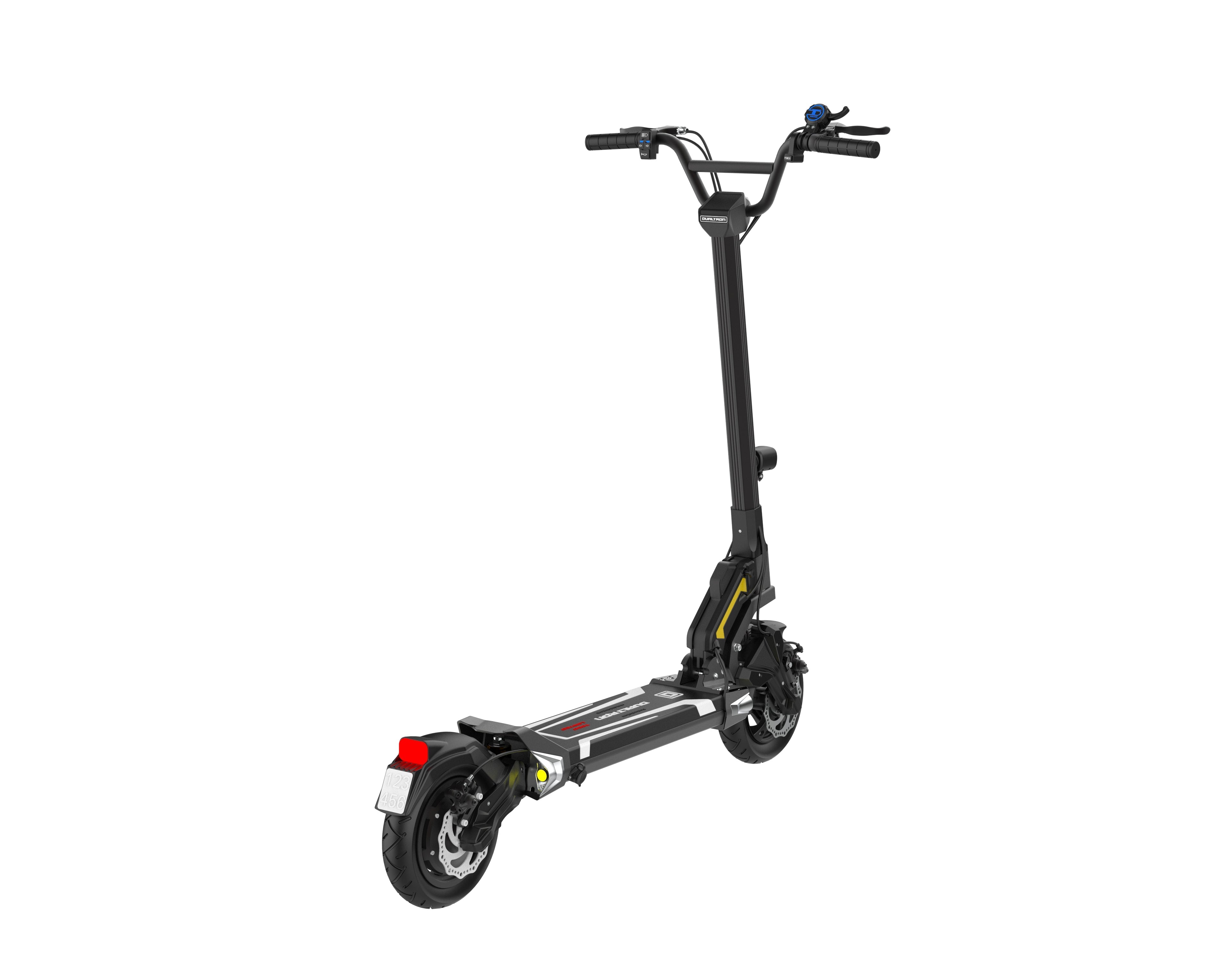

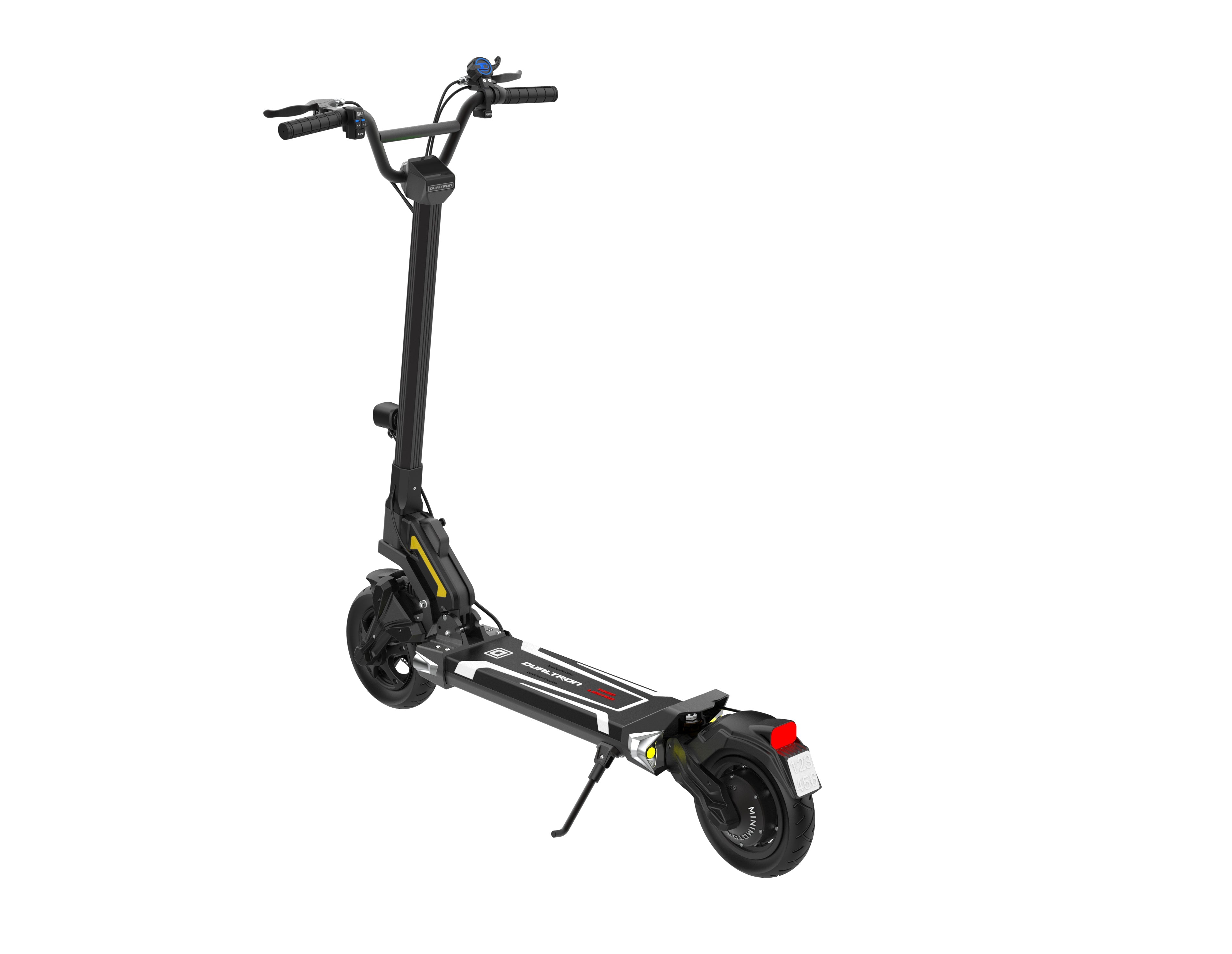

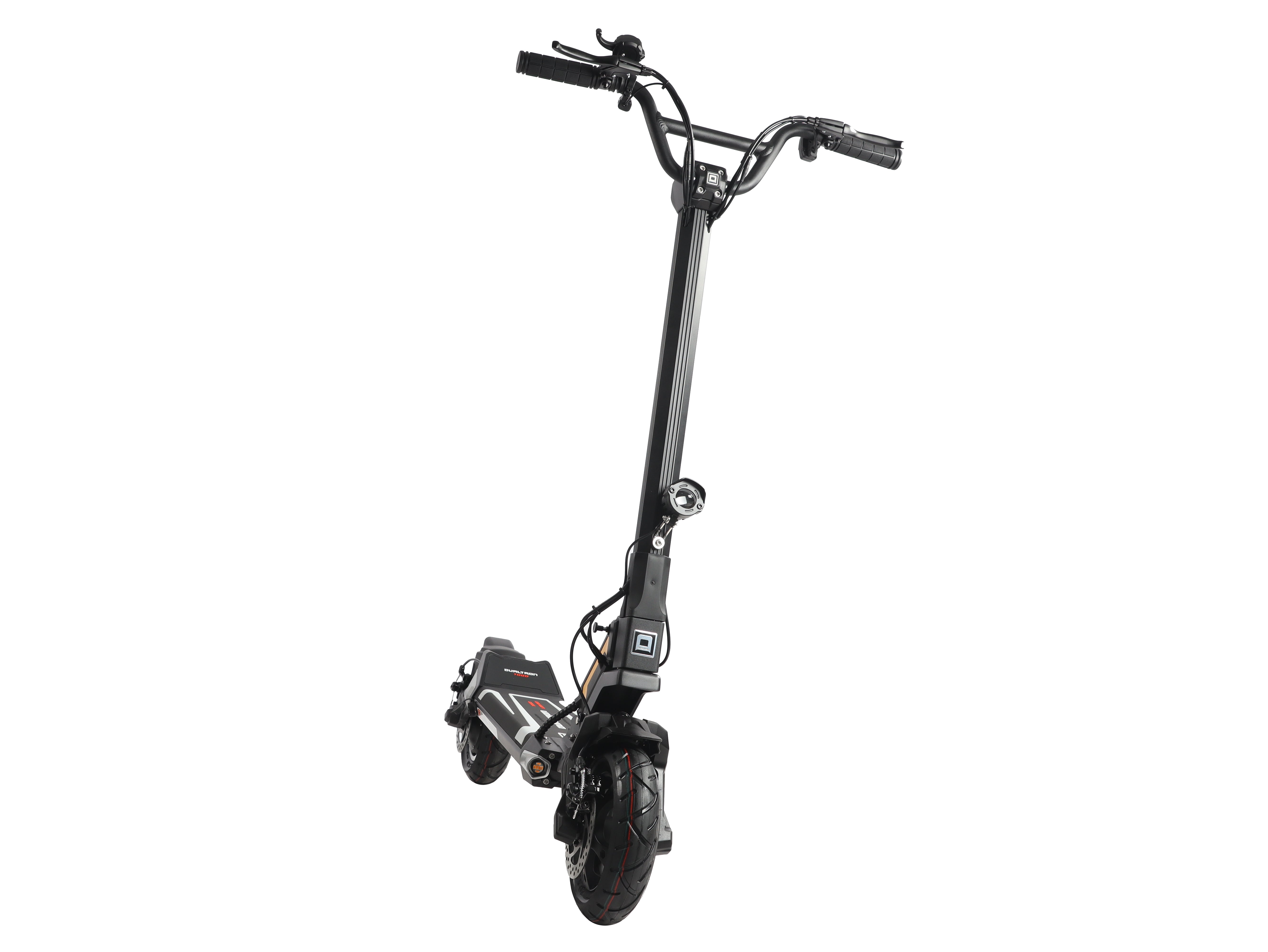

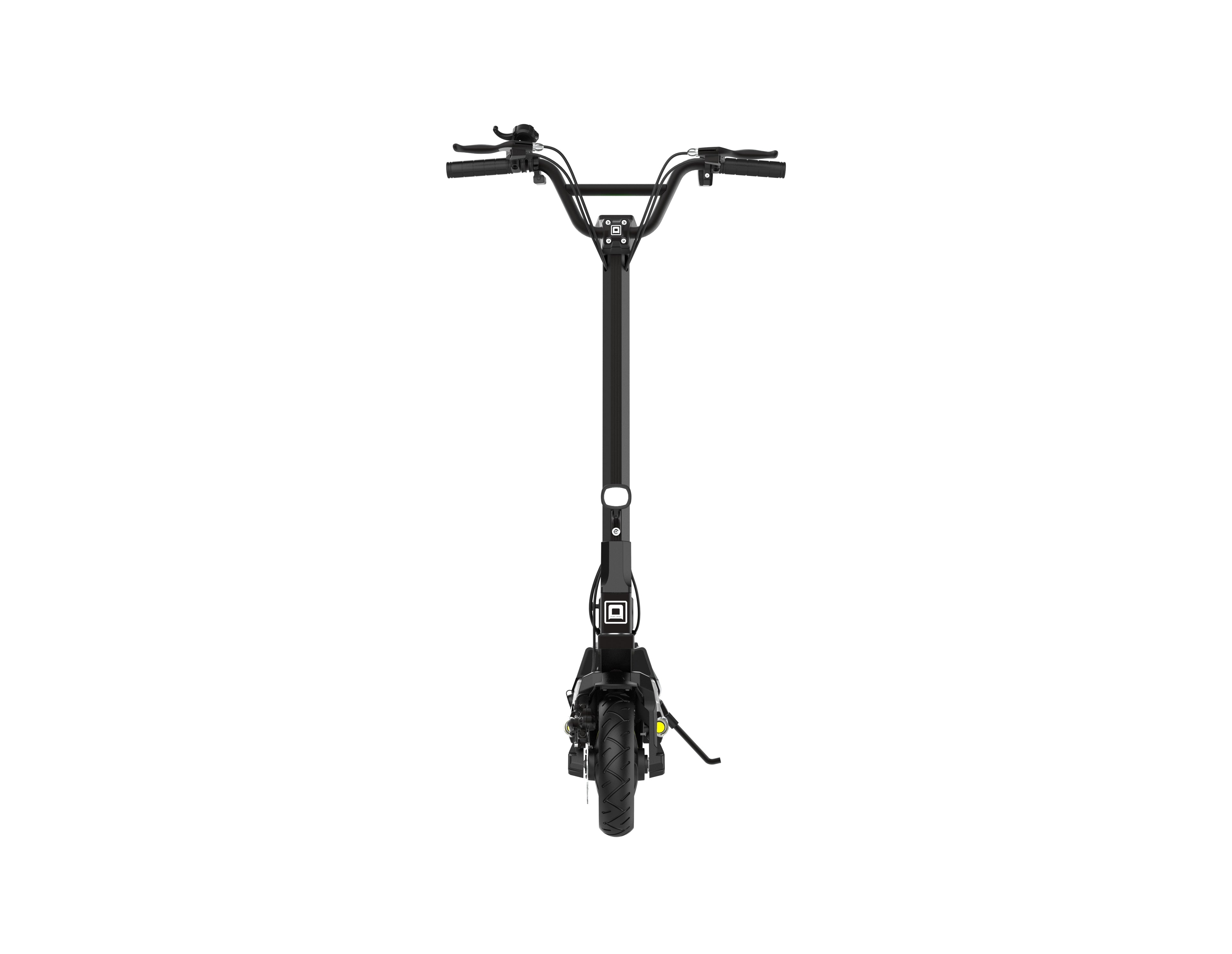

Dualtron Togo Limited (60V 13.5Ah): Practical Urban Mobility

The Dualtron Togo Ltd (60V 13.5Ah) is an agile, single-motor electric scooter designed to provide a highly controlled and reliable ride for daily city transit. Combining smart tech integration with a robust set of safety protections, it delivers a practical and predictable commuting experience.

Key Features

• Efficient Single-Motor Drive: Powered by a 1000W nominal BLDC Hub Motor built into a nimble single-motor drive system.

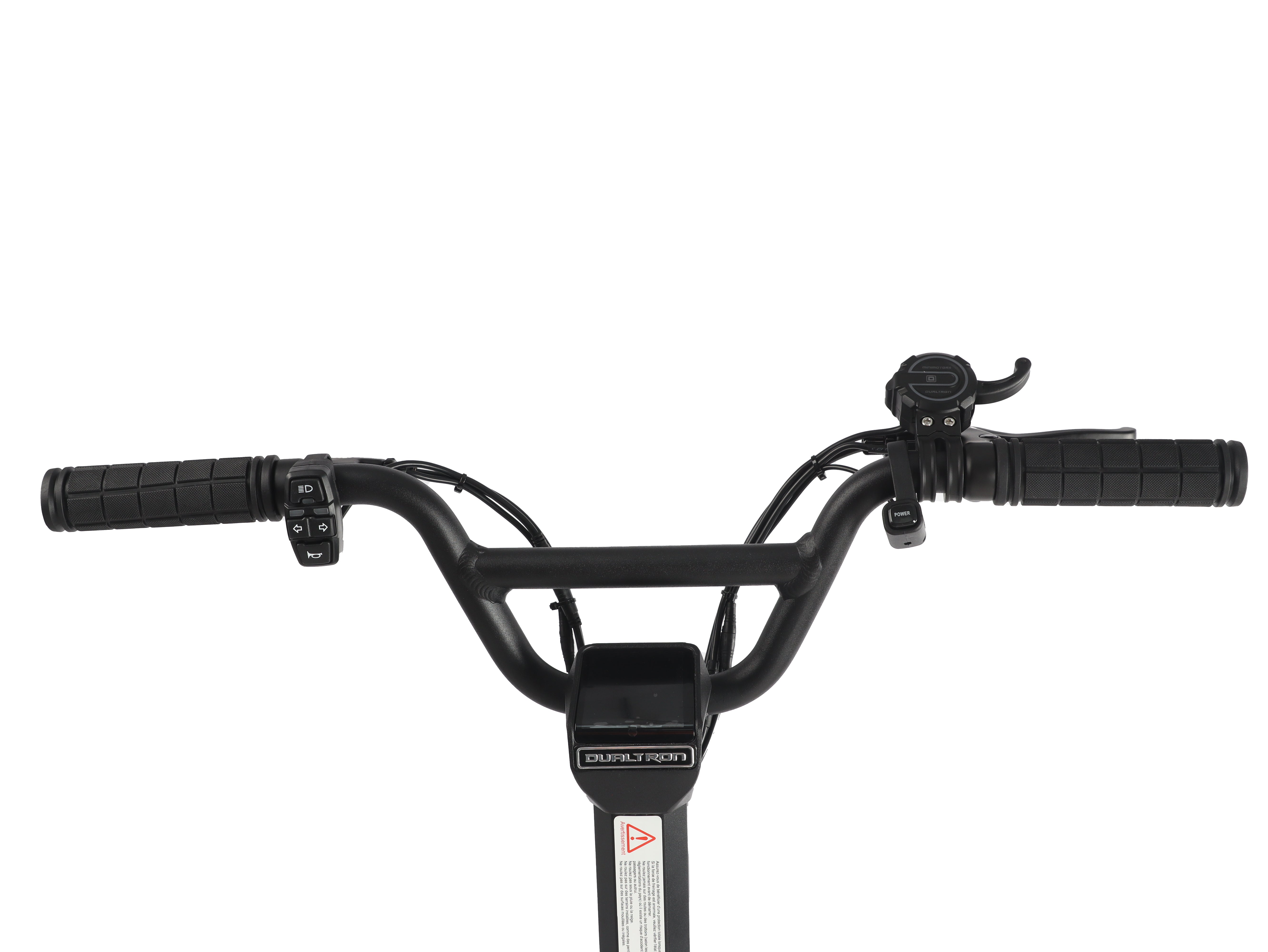

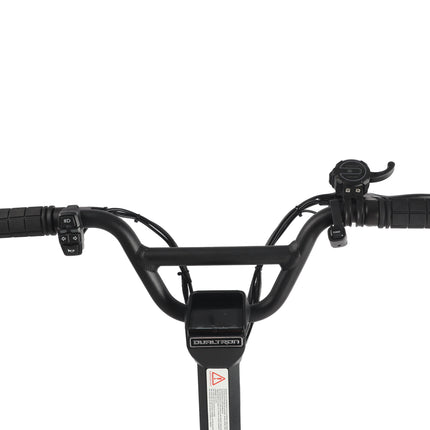

• Smart App Connectivity: Features an integrated EY2 display that connects directly to the Dualtron App for seamless setting management.

• Advanced Battery Management System: The 60V 13.5Ah CN battery utilizes a smart BMS featuring over-heating, short circuit, over-current, over-discharge, and over-charge protections. Additionally, a dedicated BMS protection program initializes if the battery temperature exceeds 55°C.

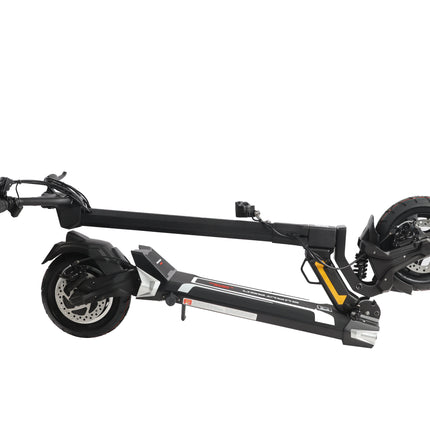

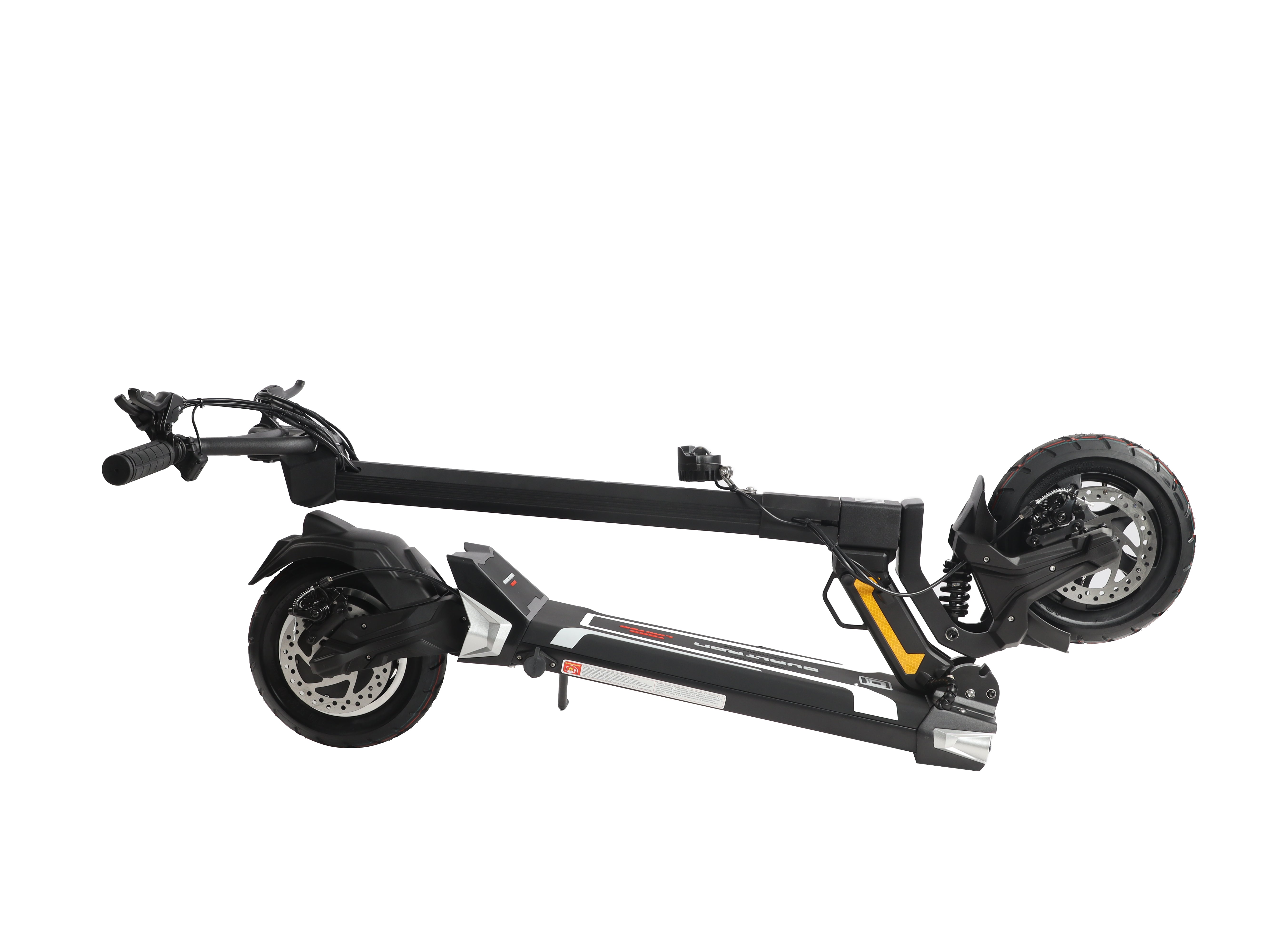

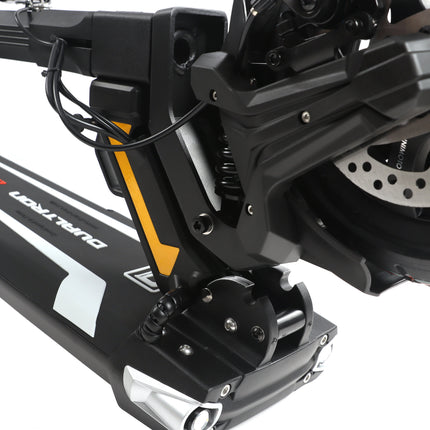

• Compact and Foldable Design: Weighing around 25kg, the scooter collapses down to a highly portable footprint of 1230mm x 635mm x 460mm.

Technical Specifications

• Model: Dualtron Togo Ltd

• Motor Type: BLDC Hub Motor (Single motor drive)

• Nominal Power: 1000W

• Battery Capacity: 60V 13.5Ah CN

• Range: 40km

• Speed: 50km/h

• Max Slope / Climbing Angle: Around 26.8% (15°)

• Net Weight: Around 25kg

• Max Load Capacity: 100kg

• Display: EY2 display with Dualtron App compatibility

• Dimensions (Unfolded): 1260mm x 635mm x 1220mm

• Dimensions (Folded): 1230mm x 635mm x 460mm

• Wheelbase: Approximately 985mm

• Ground Clearance: 130mm

Rider & Operational Guidelines

• Rider Requirements: Designed for riders between the ages of 16 and 60 years old, with a required height range of 120 cm to 200 cm (3'11" to 6'6").

• Traversable Terrain: Specifically optimized for asphalt and flat pavement. It is engineered to clear small physical obstacles under 5 cm and gaps narrower than 5 cm.

• Temperature Thresholds: Built to operate effectively in temperatures ranging from -5 to 45°C. For safe battery maintenance, the recommended charging ambient temperature is between 0 and 40°C. Safe storage parameters range from -20 to 50°C.
